Choosing a diagnostic scan tool: what actually matters in a working workshop

Every workshop reaches the same crossroads. The tool you have reads codes, but the job in front of you needs more than a code. Somewhere between a R2 000 code reader and a R45 000 diagnostic platform sits the tool that is actually right for your business — and the gap between those two numbers is where most workshops get the decision wrong.

Here is how we help customers work through it, based on what we see in workshops across Limpopo every week.

Start with what the tool has to do, not what it can do

Spec sheets are written to impress. The more useful question is narrower: what are the five jobs you turn away, or send elsewhere, in a typical month?

For most independent workshops the answer falls into a few buckets:

• Reading and clearing faults across a mixed fleet of makes

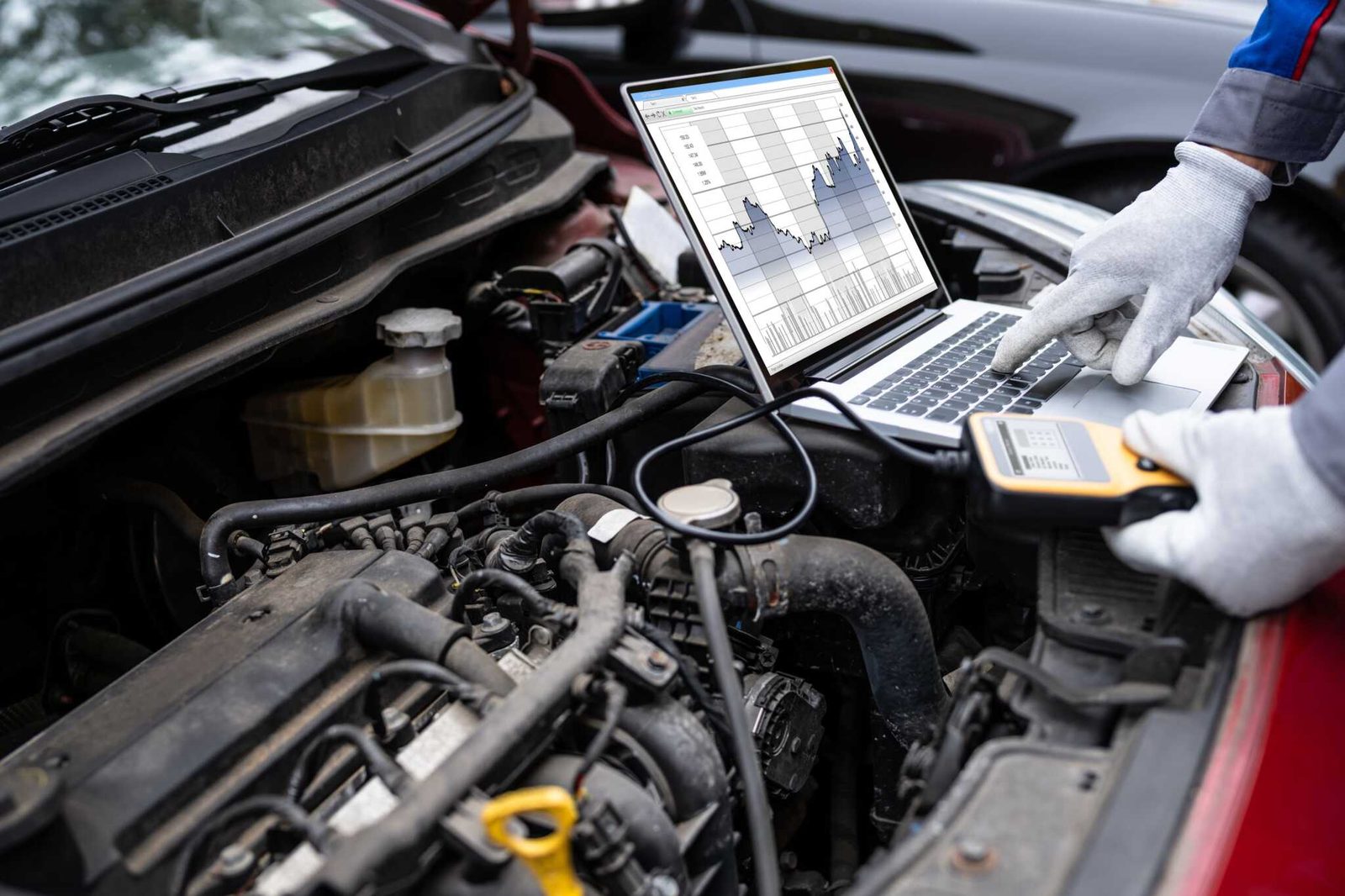

• Live data — watching sensors behave while the engine runs
• Bidirectional control — commanding a component directly to test it
• Service resets — oil, brake pad, steering angle, DPF regeneration, TPMS
• Key programming and immobiliser work
• ECU programming and coding on newer vehicles

Each step down that list adds cost. Being honest about where your work actually stops saves real money.

Bidirectional control is the line worth crossing

If there is one capability that changes what a workshop can charge for, it is bidirectional control. A basic reader tells you a fuel pump circuit has a fault. A bidirectional tool lets you command that pump on from the driver's seat and watch what happens — without pulling the vehicle apart to get to it.

The standards behind the socket

The 16-pin connector under the dash is standardised — it is defined by SAE J1962, with the diagnostic services themselves set out in SAE J1979 and the underlying communication protocols in the ISO 15765 family. That standardisation is why a generic reader can pull a basic emissions fault from almost any modern car.

What it does not give you is manufacturer-specific access. Body modules, transmission control, ADAS calibration and immobiliser functions sit outside that generic layer. This is the single biggest reason a cheap reader disappoints: it is doing exactly what the standard asks of it, and nothing more.

Software updates matter more than the hardware

A diagnostic tool is a subscription to a database as much as it is a piece of hardware. Vehicles released after your tool's last update are, functionally, vehicles it cannot see properly.

Before you buy, get clear answers on three things:

1. How long is the included update period, and what does renewal cost afterwards?
2. Is the unit registered to you, so updates and warranty actually work?
3. Who do you phone when an update fails at 4pm on a Friday?

Why grey imports cause problems

We see this regularly. A tool bought cheaply online arrives already registered to another account, or registered to a region that does not match. The hardware works. The updates do not, the warranty is unenforceable, and there is no one to call.

As the sole ThinkCar distributor in Limpopo, Valley Tech Solutions supplies units through the official channel — which means authentic hardware, valid manufacturer warranty, correct software registration in your name, and a local team that answers the phone.

A sensible way to decide

1. List your last 20 diagnostic jobs. Note which ones needed capability you did not have.
2. Identify the ceiling. If three of those twenty needed key programming, that is a real revenue case. If none did, do not pay for it.
3. Check coverage on your actual makes, not the headline number.
4. Price the total. Hardware plus updates over three years is the honest figure.
5. Confirm the support path before money changes hands.

The right tool is the one that pays for itself on the jobs you already turn away — not the one with the longest feature list.

In short

Buy for the work in front of you, not the work you imagine. Cross the bidirectional line if your job mix justifies it. Budget for updates from day one. And buy through a channel that leaves you with a registered, warranted unit and someone local to call — because the day you need support is never a convenient one.
